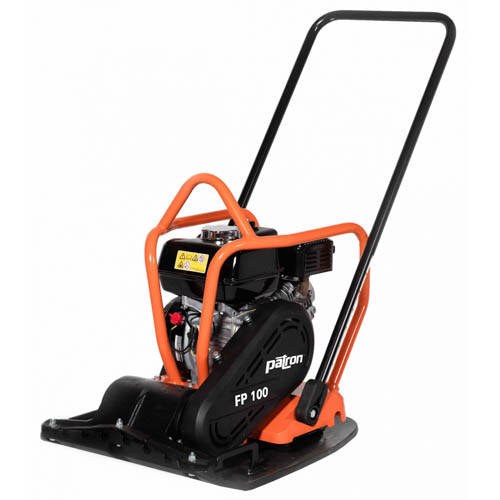

Patron FP100
Forward Plate Compactor, 20", 210 LBS, Honda
Item Number: PC-FP100
The Patron FP100 is the larger brother to the FP75, utilizing the same proven Honda GX160 engine to efficiently compact aggregate; including asphalt, gravel, sand, and silt. Where the unit differs is in the size of the bottom plate. The added width and additional weight on the FP100 give this unit a significant uptick in compaction force. Water tank and wheel kit are also available.
Features
- Sealed bearings make this unit oil-free, resulting in zero eccentric maintenance
- Lifting hook
- Stowable handle
- Optional wheel kit (sold separately)
- Optional water tank for asphalt (sold separately)
| Weight (LBS) | 210 LBS |
|---|
| Plate Width | 20" |
|---|
| Motor | Honda GX160 |
|---|
| Horsepower | 5.5 HP |
|---|
| Frequency | 5,700 VPM |
|---|
| Centrifugal Force | 3,822 FT/LBS |
|---|
| Sound (Decibels) | 104 dB(A) |
|---|
| Vibration | 1.3 M/S² |
|---|
| Travel Speed | 82 FT/MIN |
|---|
| Warranty | 2 Years |
|---|
