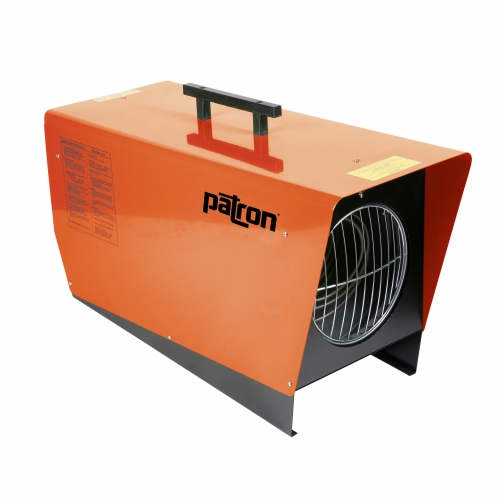

Patron 18E-1
Electric Heater, 18kW, 81A, 240V Single Phase
Item Number: PA-18E1
The Patron 18E-1 is a compact, yet powerful source of clean, dry heat. This unit produces 65,000 BTU/Hr and disperses heat across a large area with a 590 CFM fan. Useful in any application from construction sites to tented events, the 18E-1 is extremely safe and reliable. Be advised this is the single phase version, which requires 81 amps to operate.
Features
- 3-Mode Operation: Fan only, 13kW, and 18kW
- For heating, drying, and ventilating
- Integrated ambient thermostat from 32°F - 100°F
- Overheat protection at 104°F
- Durable steel casing with powder coating
- Stainless jacketed heating coils
- Fast, high temperature rise with uni-directional fan
- User-friendly and proven reliability
- Works on 208V
- Cord and plug not included
| Heat Output (BTU/Hr) | 65,000 |
|---|
| Amperage (A) | 81 A |
|---|
| Voltage (V) | 240V (1-PH) |
|---|
| Wattage (W) | 18,000 W |
|---|
| Airflow (CFM) | 590 CFM |
|---|
| Cord Length | Not Included |
|---|
| Plug Type | Not Included |
|---|
| Sound (Decibels) | 58 dB(A) 1m |
|---|
| Weight (LBS) | 62 LBS |
|---|
| Dimensions | 32" x 14.5" x 20.5" |
|---|
| Warranty | 2 Years |
|---|
| Certification | UL / cUL |
|---|
| Max Cable Length | 50-ft (2AWG, 3-wire, SOOW) |
|---|
