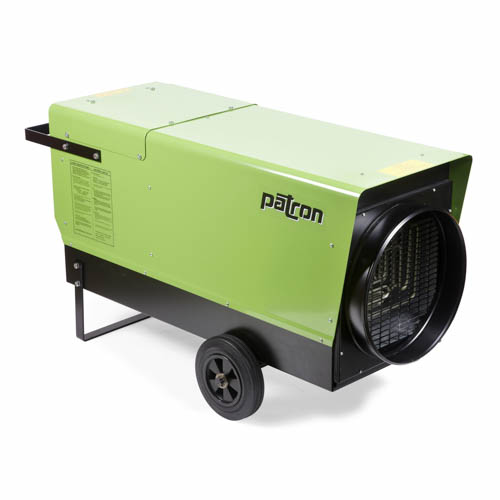

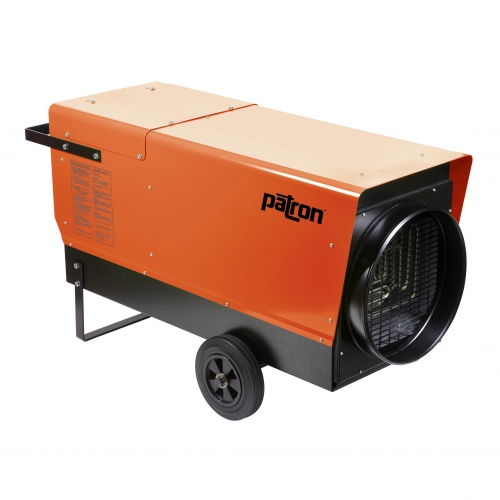

Patron 60E

Electric Heater, 60kW, 75A, 480V, Three Phase

The Patron 60E is an electric powerhouse in any demanding application. Suitable for a magnitude of situations, it will endure the harshest of applications, all while pumping out over 205,000 btu/hr. It features transport wheels and a rear lifting handle, making it extremely portable, as well as a 14″ duct adapter for areas and sites in need of specific heat distribution. The 60E runs off 3-phase 480V power and pulls 75 amps. It produces hot, clean air and blows it over a very large area with a powerful 1765 cfm fan.

Features

• 3-Mode Operation: 24kW, 48kW, 60kW

• For heating, drying, and ventilating

• Integrated ambient thermostat from 32°F – 100°F

• Overheat protection at 104°F

• Durable steel casing with powder coating

• Stainless jacketed heating coils

• Fast, high temperature rise with uni-directional fan

• User-friendly and proven reliability

• 14″ duct ring

• Transport wheels and rear lifting handle
